At Baseline11, the engineering culture is that which focuses on building reliable applications that stand up for high performance. Certainly, one of the essentials is familiarity with how the JMeter load testing tool is structured and what it is capable of in particular; that especially includes its constructs or blocks, i.e., Test Plan.
What Is a JMeter Test Plan?
The best analogy to understanding the Test Plan in JMeter is the ground by which any performance testing stands on. All tests have their initiation by this structure, from simple sanity checks to huge enterprise load simulations. In terms of load testing using JMeter, the following are set by the Test Plan.
● Flow of the test
● Components and Configurations involved
● Execution patterns
● Handling of data
● Scope of variables
Regardless of using the Apache JMeter tool for load testing or transitioning to the JMeter cloud load testing tool, the Test Plan remains the basic standard format that constitutes defining your performance scenarios.
● Locating and Adding a Test Plan

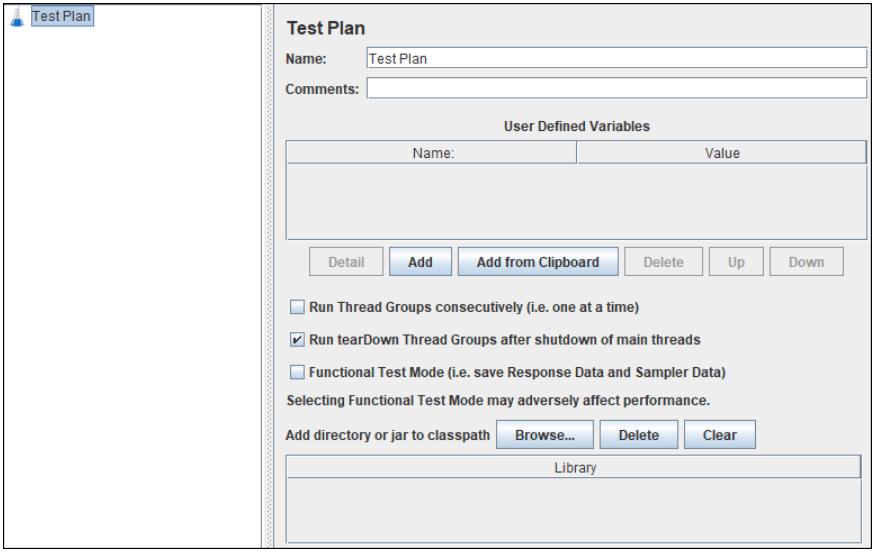

On running JMeter in GUI mode, you should see the Test Plan on the top-left portion of the interface. It is a system-generated name that cannot be deleted, but it is quite possible to disable the Test Plan when some valid reason arises to do so. It would be extremely useful for teams at Baseline11, who may be reviewing many Test Plans or having to switch temporarily between these but not operating under the Test Plan.
For example, whether working on a local setup or a cloud setting using the JMeter cloud load testing tool, the Test Plan is nothing but a blueprint that acts as an entry form or construction for any organization and structuring of a test.
What to Configure Inside the Test Plan
A large number of settings can be applied in the JMeter Test Plan. Most of these arrangements are fruitful in the enabling of flexible and maintainable structures for performance testing using the JMeter load testing tool, as well as a few extensions of the API load testing tools in JMeter that are objected to by most of the Baseline11 teams. Following are the discussions on the configurations:
1. Name
It’s possible to rename the Test Plan to the purpose that your load testing scenario signifies, a meaningful name like “Baseline11-API-Stress-Test-Plan,” wherein the team will find it easier to manage multiple Test Plans being worked upon in a distributed environment or cloud infrastructure harnessing a JMeter cloud load testing tool.
2. Comments
This is more or less the document block within your Test Plan. Here at Baseline11, we are fond of:
● Objectives of testing
● Expected behavior of system
● Notes about the configuration
● References to APIs or microservices
These clear comments help a lot in building trust in handling large-size performance projects in Load testing tool JMeter.
3. User-Defined Variables
This is probably one of the most powerful aspects of the Apache JMeter load testing tool. Reusable values such as the following could be stored, but are not limited to:
● URLs
● Authentication tokens
● File paths
● API endpoints
These variables are highly useful during API test automation as well as when using API load testing tools JMeter, because changes can be incorporated in one single place, that is, at the Test Plan level, and they are reflected everywhere.
4. Run Thread Groups Consecutively
There is a checkbox option that can be enabled while defining several Thread Groups so that Thread Groups run sequentially and not concurrently. Baseline11 engineers most often use this to simulate multi-phased workflows such as
● Login
● Test data setup
● Firing the actual API flow
● Running the teardown
Such a setup is quite important in using the JMeter load testing tool for complex chained testing regimes.
5. Run Teardown Thread Groups
If enabled, ensures all cleanup runs after the main test. Extremely useful in API-centric testing through the API load testing tools JMeter for such scenarios in which all test data should be deleted, caches flushed, or logs audited.
6. Functional Test Mode
Thus far, JMeter is known as a load testing tool; however, it has facilities for functional validation. This mode allows JMeter to keep more details about responses during its execution. Sometimes this test mode may be used by teams at Baseline11 to validate API structure or consistency of responses before getting into heavy load testing simulation.
Testing of Plans Ingredient
● Thread Groups
Thread Groups specify how many virtual users to run, how fast the virtual users start, and how long these users remain active. Thread Groups are fundamental building blocks of the different scenarios that are defined for the apache jmeter load testing tool. So without such Thread Groups, practically no test execution can be realized.
● Config Elements
The Config Element holds the default settings or variables that the Samplers and other executing components will use during execution. This will set a standard for URL, header, and parameter values. This makes your setup reusable and easy to maintain.
● Non-Test Elements
They contribute to the test environment but do not send any requests. For example, Debug Samplers or the HTTP Mirror Server contribute to your test plan but do not help create the load.
● PreProcessors
PreProcessor actions are always executed before a Sampler action. This could be creating dynamic data, modifying a request, or gathering some data prior to firing off the main request. This way, the behavior of the load test appears really realistic according to the scenario.
● PostProcessor
PostProcessor executes after sampler action. That means post-processing of collected data from the server response to assign variable values for upcoming executions. Post-processing is crucial in handling complex API load testing tools JMeter workflows in distributed scenarios.
● Assertion
Assertions check the server responses received. The Assertions would check for accuracy, content, response time, and structure. This not only ensures that your test is putting the load on the server but also validates the API when it is under stress.
● Timers
Timers insert delays between requests to avoid flooding all the requests at once. They should consider the reasonable user’s behavior and avoid the situation in which all threads fire requests at once. Timers help us create more realistic traffic patterns.
● Listener
Listeners capture and visualize test results—the response times, errors, throughput, and graphs—and ultimately help analyze your system under stress. They are vital for the analysis of results in the jmeter cloud load testing tool.
● Test Fragments
A Test Fragment provides a space for storing reusable parts of a Test Plan. They are usually paired with Module Controllers or Include Controllers for building modular and scalable test architectures. Test Fragments come into play when multiple Thread Groups share a common workflow.
What Cannot Be Put Inside a Test Plan
● Sampler
Samplers send real requests (HTTP, JDBC, or FTP) that must exist inside a Thread Group. They are the core pieces of the actual execution; hence, putting them directly into a Test Plan would violate the logic of execution.
● Logic Controllers
Logic Controllers organize Samplers in loops, conditionals, or random orders. Since those extend the flow of Samplers, those should exist in the Thread Groups and not on Test Plan.
● Another Test Plan
Only one Test Plan per project file is allowed by JMeter so as to not create a conflicting execution hierarchy by putting a second nested Test Plan. Each Test Plan must exist on its own to maintain structural integrity and readability within the organized load testing tool JMeter.
Frequently Asked Questions (FAQ’s)
1. How do I determine when something is inside the Test Plan versus a Thread Group?
Test Plans will contain the global information variables, configurations, comments, and structure elements; everything that is not part of actual test execution components (Samplers, Controllers, Logic) needs to remain in Thread Groups.
If you can “run” it, it belongs in a Thread Group. When it does define/configure it, it belongs to the Test Plan.
2. Can I share any part of the Test Plan with different Thread Groups?
Yes. Create modular components with Test Fragments, Module Controllers, and Include Controllers. This prevents duplication and guarantees that shared workflows like login or token generation are equivalent throughout the whole Test Plan.
3. When should I enable “Run Thread Groups consecutively”?
This feature will be enabled when your test simulates multi-phased workflows like setup → execution → teardown. If your Thread Groups are totally independent (e.g., different traffic patterns hitting the same API), leave this unchecked so they will run in parallel.
4. Do User-Defined Variables override Config Elements?
Yes. Variables set at the Test Plan level have the highest scope; therefore, they supersede the config elements. Config Elements set defaults, but any variable referenced using ${variableName} will use the Test Plan value if it exists.
5. Is the Functional Test Mode for the load test acceptable?
No. Functional Test Mode puts a very large overhead since you store detailed responses. It is only intended and should only be used for validation or debugging, not for performance runs. All actual load testing should be done with this off to avoid any resource spikes and thus flawed results.
